100AMP storage battery connection LITHIUM BATTERY TERMINALS Energy storage battery connector
100AMP storage battery connection LITHIUM BATTERY TERMINALS Energy storage battery connector
Login to see price
Description
 |
 |
 |
 |
 |
 |
Performance parameter：
1、Electrical parameters
■ Rated Voltage：600V DC
■ Rated current：150AMP
■ Withstand voltage：1500V DC
■ Insulation Resistance：≥500MΩ
■ Contact Resistance：≤0.5mΩ
2、Mechanical parameter
■ Contact surface diameter：18mm
■ Screw bore diameter：M8
■ Tightening torque: M8*12 Threaded hole (Coarse thread)：12N.m MAX
3、Materials composition
■ Conductor: brass
■ Insulating material：PA66 Flame retardant V0 Level
■ Insulation parts thermal deformation temperature：205℃

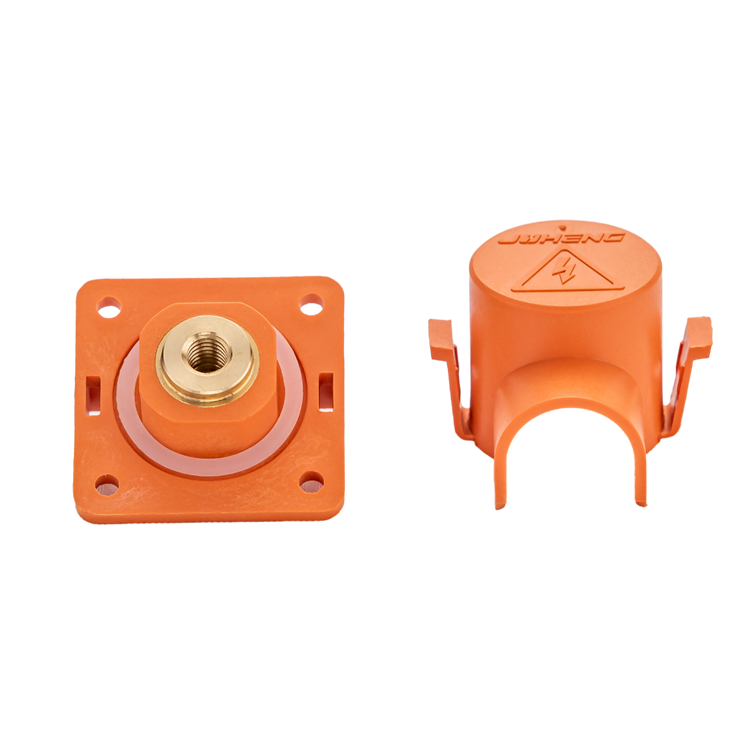

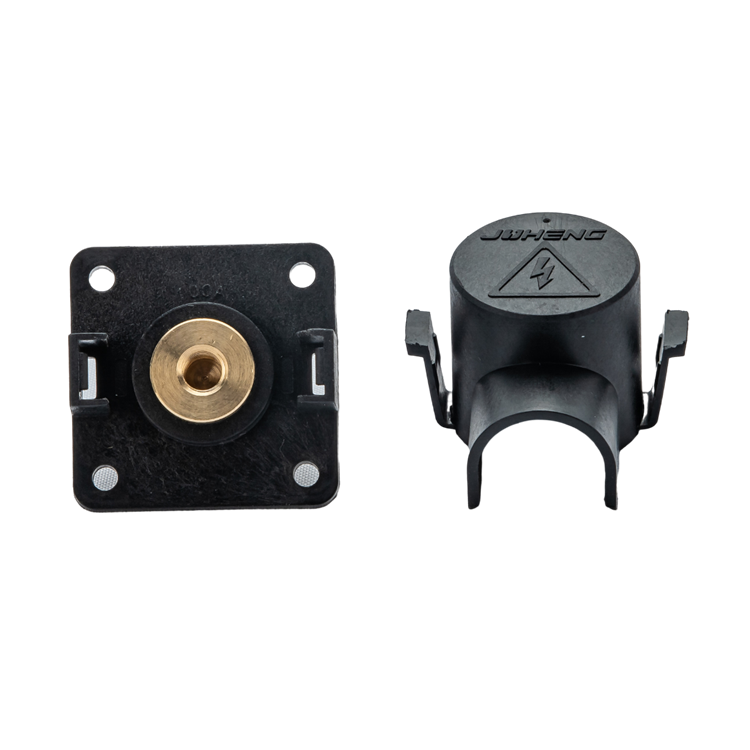

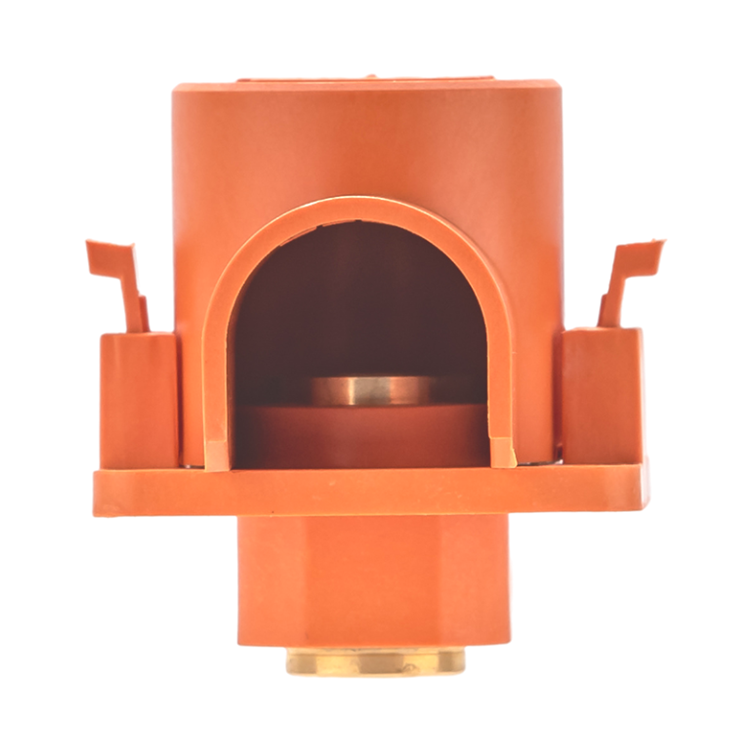

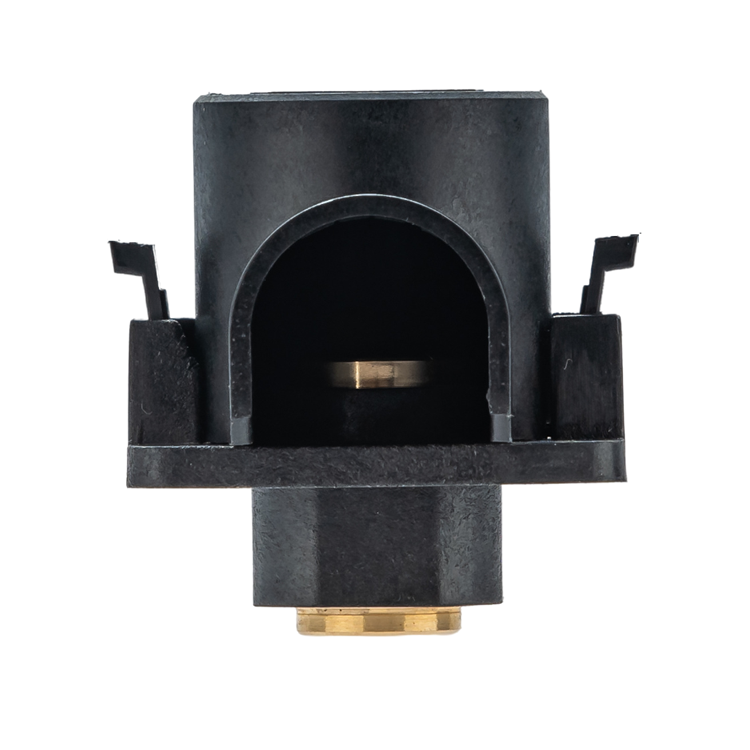

■ Color：Positive pole orange color / Negative pole black color
■ Sealing ring: silicone

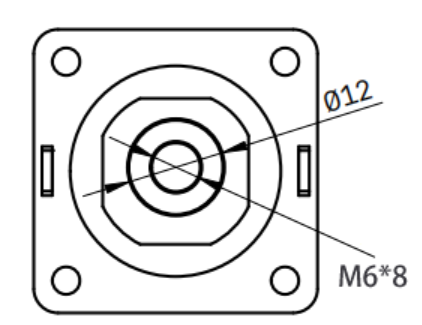

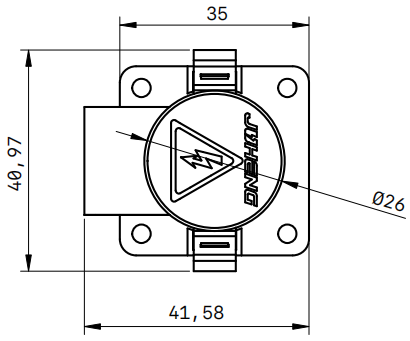

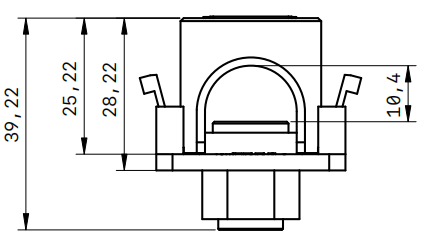

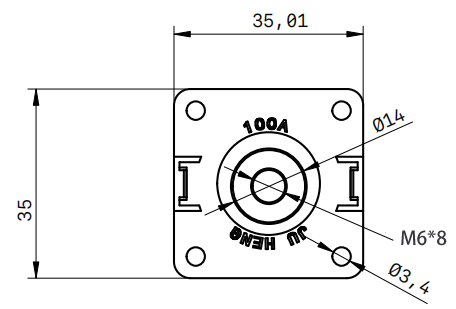

External dimension
Units：mm
 |
 |
 |
 |

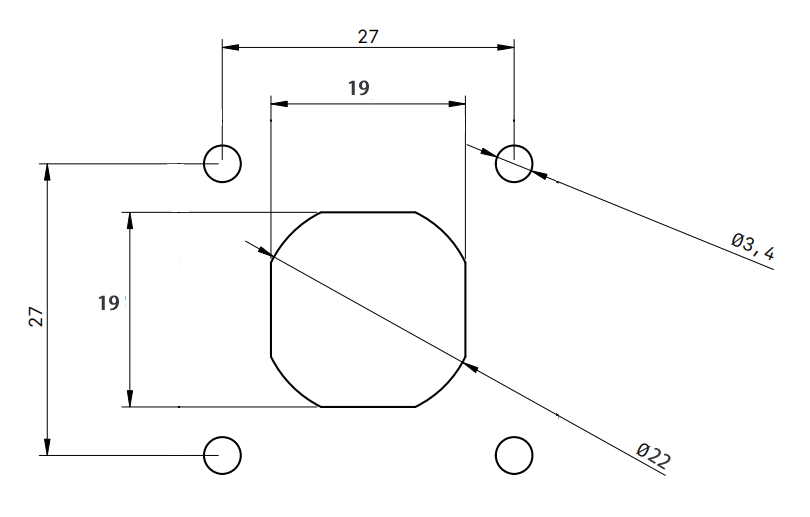

Installation trepanning
- Units:mm
